Main and Pin Cathodes

Retrofit your anodically protected H2SO4 Coolers with long-lasting Mercad Equipment Inc. Super Cathodes. These cathodes are designed to be installed in your coolers without any modification of the seal assemblies and will provide the following improvements over OEM:


  • Substantially larger cathode surface contacts the acid and provides better and more consistent current distribution over the entire anodically protected acid-wetted surfaces.



  • Reduced electrical resistance and consequently lower voltage drop is obtained due to the larger diameter rod. This improves voltage distribution and millivolt readings around the vessel.



  • Lower maintenance cost due to the extended life of the cathode rod, consider 2~3 times longer life expectancy than that of the older technology, sheathed style of cathode. This life expectancy is the result of the larger metal volume and the lower current density at the surface of the cathode. The Mercad Equipment Inc. Super cathode is ideal for those plants wanting to extend the interval between major shutdowns.



  • Savings on service expenses is realized with Mercad Equipment Inc. cathode assemblies as you will need only minimal down time for inspection and cleaning since there is no PTFE sheath and perforations to become fouled or damaged. The bare surface of the Mercad Equipment Inc. Super cathode is easily inspected for corrosion and can be cleaned with a swipe of a wet cloth.



  • Improved Anodic Protection control of corrosion due to the more uniform electrical current distribution available throughout the anode surface of the vessel.



  • Prices are generally equal to or less than OEM cathodes, and when you factor in the extra life expectancy, you realize a huge saving on these consumable spare parts.

New Generation "Bare" Main Cathodes

Miniature sample Cathode

P# 10110

Main Cathode for MECS Horizontal Cooler

P# 10310

Single-ended Main Cathode for C-I-L/Mercad Cooler (requires P# 10380 Acid Seal Kit per rod, NOT included)

P# 10320

Double-ended Main Cathode for C-I-L or Mercad Cooler (requires two P# 10380 Acid Seal Kits per rod, NOT included)

P# 10330

Main Cathode for Vertical C-I-L or Mercad Cooler (requires P# 10380 Acid Seal Kit per rod, NOT included)

New Generation Extended Life Cathode Rods

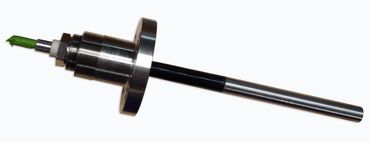

P# 10350 Rod & Insulator for Pin Cathode

P# 10150

Nozzle Cathode Rod and Insulator for MECS Cooler

P# 10350

Replacement Rod & Insulator for Pin Cathode used in C-I-L or Mercad Cooler (requires P# 10380 Acid Seal Kit per rod, NOT included) (rod length required - to be supplied by customer)

P# 10610

Complete Pin or Pipe Cathode Assembly for C-I-L or Mercad Cooler or Piping (rod length required - to be supplied by customer)

P# 10612

Flange Housing For Pin or Pipe Cathode Assembly for C-I-L Or Mercad Cooler or Piping (needs Replacement Rod P# 10350 & Seal  Kit P# 10380 to make a complete assembly P# 10610)

P# 10650

Rod & Insulator for Piping Cathode (requires P# 10380 Acid Seal Kit per rod, NOT included) (pipe size required to be supplied by customer)
